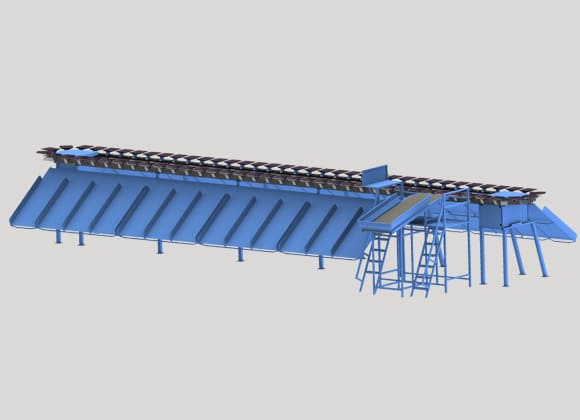

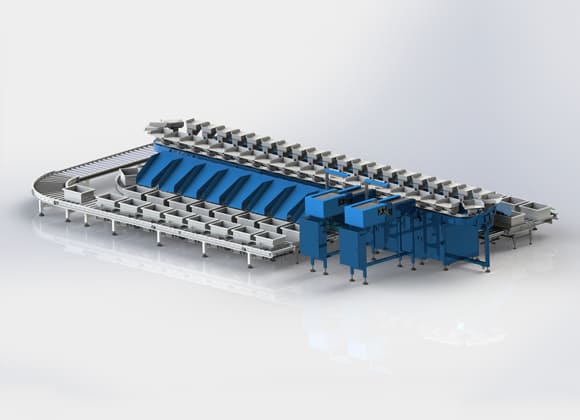

Tilt Tray Sorters

Sorts Most Diversified Items, Sorts More Types Of Packages Than All Other Sorters.
Avoids Damage To Goods By Not Pressing Parcels During Conveying And Sorting
Sorts Various Sized-Shapes Parcels – Plastic Bags, Irregular Packages, Mails, Books, Periodicals, etc.
Items Can Be Discharged Either Side To Their Right Destination.
Modular Design With Fewer Moving Parts Takes A Shorter Period For Installation.
Compared To Other Sorters, A Tilt Tray Sorter Features The Lowest Noise Level.

Consists Of Parcel Infeed Station, Sorting System, And A Pop – Up Transfer System.
Parcel Infeed Has DWS With Six – Side Scanning – Weighing With Deviation Correction System
Sorter Comprises Multiple Hinged Trays And Driven By A Linear Motor.
Trays Loaded With Goods Are Transported To Corresponding Position.
Tray Is Then Pneumatically Tilted To Discharge Gods In Corresponding Chute.
Suitable For Batch Processing, E – Co mmerce, Small Factories, Distribution Centres.
Can Move – Sort Widest Mix Of Product Shapes, Sizes And Materials.
Only Trays Needs To Be Replaced For Different Categories Of Products.
Sorting Process Is Gentler, Effectively Avoiding Damage To Goods.
Supports Automatic Chute Order Binding – Boxes Automatic Switching After Order Completion.
Items Or The Consolidation Of Orders By Wave.
Can Also Connect With Pop – Up And Transfer Machine And Roller Conveyor.
Easily Scalable, Can Realize All – Process Unmanned Picking.

Can Move A Variety Of Product Shapes, Sizes And Materials, Including Soft Goods Like Polybags. Generally As Continuous Loop Sortation Conveyor. Has Combination Of Trays That Sit On Movable Carts, A Conveying Line That Moves The Trays In A Continuous Loop And Chutes That Transfer And Divert The Products Away From The Sortation Line. Can Sort Irregularly Shaped Products And Handle A Range Of Products – From Small Lightweight Polybags To Larger Packages, Weighing Up To 30 Kg. Works Best When The Items Are Able To Slip Off Or Flow Off The Tray By Gravity. Sortation Rates With Double Induction Can Exceed 375 Cartons Per Minute. Flexible, High-Speed Solutions That Offer High Reliability With Low Operating Costs. Tray Mechanisms And Chutes Can Be Adapted To Handle A Variety Of Product Weights And Sizes For Each Given Application. Single Divert Point Can Have Up To Four Divert Locations. Often Used For Speed Sortation Of Small Items, Such As Polybags, Small Parcels, Media – Cds, Dvds, Books Or Magazines, Jewelry, Pieces (Eaches), Soft Goods, Pharmaceuticals, Medical Vials, Optical Products – Eyeglasses Or Sunglasses,

Consisting Of Individual Parts To Facilitate High Density And High-Speed Sortation. This Type Of Sorter Is Lined With Trays, Each One Carrying A Product. The Tray Can Then Be Tilted To Dispense The Product Into A Chute.

Products Placed On Tiltable Trays That Are Rotating In A Continous Loop. These Trays Are Connected To Discharge Areas- Generally Chutes.
When Activated, Trays Tilt, To Transfer Products They Are Carrying By Gravity To The Appropriate Chute. Items Can Be Added On Trays In The Loop Manually Or Automatically At One Or Multiple Locations Throughout The Loop. High Sorting Throughput 100-200+ Cartons Per Minute. Can Handle Diverse Products. Popular In The Ecommerce Apparel Industry. Very Efficient, High-Speed, High –Capacity, Gentle Sortation System Especially Popular In The Ecommerce Apparel Industry. Low Noise Levels Make For A Safer And More Comfortable Working Environment For Personnel. But Cannot Handle Fragile Goods.
