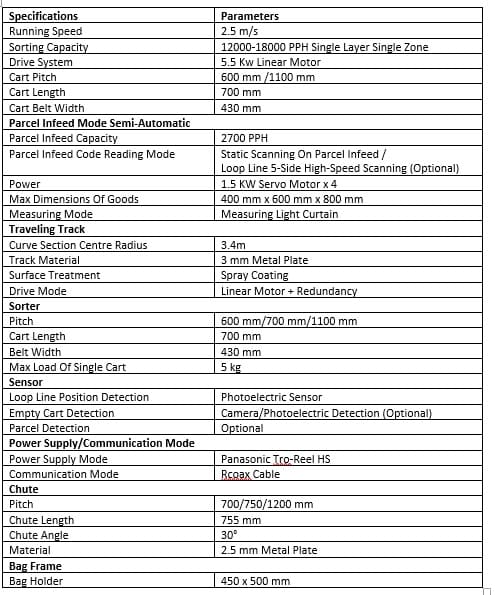

| Circular Cross Belt Sorters – Vertical Sorter With Circular Routing. Saves Valuable Space. Goods From Trucks-Trailers-Freight Containers Can Be Transported On Simple Conveyor Belt Manually/ Semi-Automated/ Automated For Infeed In Front Of Sorter For Directly Onto Sorter. Single-Layer And Multi-Layer Configurations Available. In Multi-Layer Height Difference Is 1,200mm And Each Layer Has Independent Operation Control. Running Speed: 2.5 m/s. Sorting Capacity: 12,000-18000 Pcs/Hour For Single Layer Single Zone. Noise: <70db. |
|
|
| Circular Sorter Features Include Negotiating Turns, Handling Inclines And Declines, Using Carriers Multiple Times Per Circuit, And Easily Adding Induction Points And Sort Lanes With Minimum Disruption To An Existing Operation. Options Offer Cost-Effective Solutions For Required Throughputs, Product Mix, And Facility Layout. |
| Work Flow Of Circular Cross Belt Sorters |

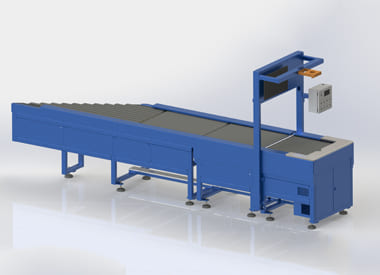

| Four-Stage Parcel Infeed – Uploading & Conveying –
Parcel Infeed Scanning: Parcel Passes Through 4 Sections-Scanning, Weighing, Caching And Accelerating To Improve The Weighing Accuracy And Infeeding Efficiency Significantly With The Optimization Algorithm. Loop Line Top Scanning: After Being Weighed, Cached, And Accelerated Through The Parcel Infeed, The Parcel Enters The Loop Line For Scanning, Segmentation, And Efficient Mis-classification Reduction. |
Reading Code And Tracking – Intelligent Rectification System
After Scanning-Weighing Package, 3-4 Servo Controls Accurately Load Package To Center Of Carrier. Deviation-Rectifying Camera Automatically Detects Whether Parcel On Cart Is In Center. And Performs Rectifying On Parcel Out Of Position. In Addition, When More Than One Parcel Detected On A Single Cart, System Will Automatically Classify Them As Abnormal And Send Them To The Abnormal Chute. |
 |
 |

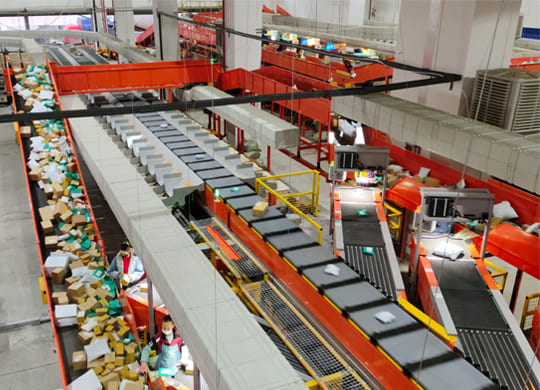

| Sorting – Sorter Carries Parcels To Right Destination (Chute) According To Barcode From Scanner. |

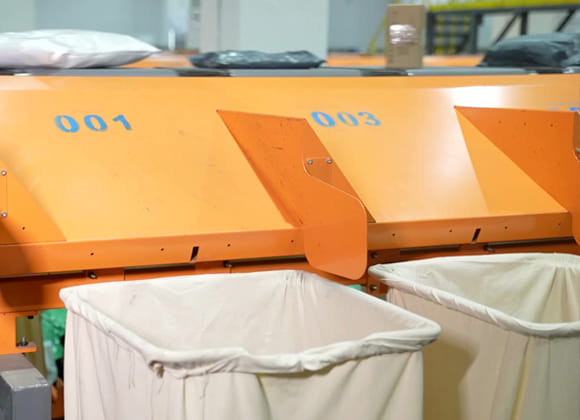

Collecting – Unique Chute Design Accurately Controls Out Feeding Position & Speed. Indicator Light With A Buzzer Turns On When A Container On Discharge Chute Becomes Full & Needs To Be Replaced. |
 |
 |
|

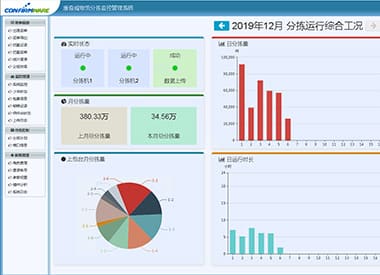

| Data Monitoring And Connection – Support Parcel Infeeding Efficiency, Operator Performance, Bag Changing Time, Overall Sorting Capacity, Misclassification Data Real-Time Statistics And Cause Analysis, User Information System Platform Docking And Other Functions. Can Be Customized With OCR, Unmanned Parcel Infeeding Scanning Software, Customized-Parcel Information Fusion Software To Meet Needs Of Distribution Center, Parcel Depots, Multi-Express Brand Co-Distribution. |
 |
|
| |
| Types Of Circular Cross Belt Sorters |

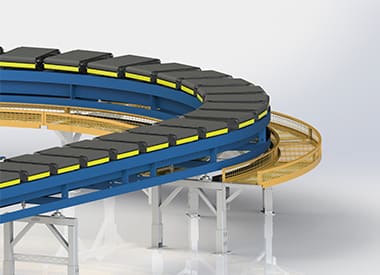

| Conventional Single Layer Circular Cross Belt Sorters – Only One Layer Of Sorting |
Double Layer Small-Big Track – Height Difference Between Layers 800mm. Upper Track Operation Relies On Lower Layer Operation. |
Double Layer Single Track Track Circular Cross Belt Sorters -Height Difference Between Layers 600mm, Only One-Layer Power Supply For Double-Layer Sorting. |
 |
 |
 |
|
| |
|
|
|
|
