Cross Belt Sorters

Cross Belt Sorters Are Extremely Accurate Circular High-Throughput Sortation System That Can Manage The Most Complex Product Mixes Quickly, Accurately, And Gently, Allowing You To Ship On Time, Every Day. Circular Sorters Process A Wide Range Of Products — From Large Parcels To Small Loose Items — To Hundreds Of Delivery Points At Throughput Rates From 20,000 To 80,000 Items Per Hour.
Benefits Of Cross Belt Sortation Systems
High Sortation Rates: Control Systems Deliver The Highest Possible Sort Rates. Single, Twin, Double-Deck, And Quad Cell Options, Supporting Technologies Like Pre-Sequencing, Allow Crossbelt Sorters Get Orders Out Fast With Throughputs As High As 80,000 Items Per Hour.
Exceptional Product Handling: Crossbelt Sorters Handle A Broad Range Of Items Including Plastic Totes, Cardboard Carton, Trays, Stuffed Envelopes And Poly Bags. Items Can Weigh From 20 Grams To 75 Kilograms With Dimensions From 50 X 50 X 1 Millimetres To 1500 X 800 X 800 Millimetres.
Compact Design: Precision Features (Like Double-Cell Oriented Offloading) Allow Crossbelt Sorters To Have The Narrowest Chutes In The Market. Narrow Chutes Positioned In Close Intervals Save Valuable Floor Space.
Efficient, Quiet Operation: Crossbelt Sorter Features Include Linear Synchronous Motors, Automatic Standby Mode For Induction Conveyor, Automatic Variable Offloading Speed, Low-Friction Plate Under Load Transfer Belts, And Double Cell Technology. These Features And Lightweight Carriers Save On Energy Costs And Reduce Equipment Wear.Ideal Solutions For:

Cross-Docking
Batch Pick & Sort
Shipping
General Routing Of Cases And Totes

Highly Flexible, Functionally Stable, And Highly Reliable Sorting System.
Comprises Of Belt Conveyor, Loading Platform, Sorting Carrier, Code Reading And Weighing System, Coding System, And Bagging System.
Conveyor-Based Sorters To Sort Large Parcels, Batch Sorting Of Apparel, Small Items, Fragile Or High Friction Products.
Ideal For Fast Moving Goods Due To Gentle Handling, Tight Divert Points.
Products To Be Sorted Added On A Continously Rotating Conveyor (Carrier) With 100s Of Miniature Bi-Directional Cross Belt Conveyors (Carts) Running In Perpendicular Direction.
When Any Individual Belt Conveyor Is Activated, It Transfers/Pushes The Product Off Of The Loop Conveyor Into A Chute Or Take Away Conveyor Arranged At Right Angles To Carrier.
Right Angle Discharge Allows For Compact Design & Higher Density Divert Locations.
Sorter Can Straight Line (Linear Cross Belt Sorter) Or Circular-Oval Loop (Circular Cross Belt Sorter)
Current Generation Cross Belt Sorters Employ Linear Induction Motor Technology, Resulting In A Simpler Design And Less Mechanical Wear Over Time.
Useful For Inbound Sortation, Put-Away, Order Fulfillment, Cross Docking, Shipping, Kitting, Warehousing, Express Centers Etc.
Popular For Sorting Media, CDs Or DVDs, Small Retail Products; Clothing And Apparels; Jewelry; Envelopes And Small Packages; Small Electronics; Health Products; Unit Items-Pieces; etc.
High Sorting Throughput 60-500 Cartons/Minute With High Density Of Divert Locations .
Low Noise Levels Make For A Safer And More Comfortable Working Environment For Personnel. But Cannot Handle Fragile Goods.
Current Generation Cross Belt Sorters Employ Linear Induction Motor Technology, Resulting In A Simpler Design And Less Mechanical Wear Over Time.
Useful For Inbound Sortation, Put-Away, Order Fulfillment, Cross Docking, Shipping, Kitting, Warehousing, Express Centers Etc.
Popular For Sorting Media, Cds Or Dvds, Small Retail Products; Clothing And Apparels; Jewelry; Envelopes And Small Packages; Small Electronics; Health Products; Unit Items-Pieces; etc.
High Sorting Throughput 60-500 Cartons/Minute With High Density Of Divert Locations .
Low Noise Levels Make For A Safer And More Comfortable Working Environment For Personnel. But Cannot Handle Fragile Goods.
Highly Flexible, Functionally Stable, And Highly Reliable Sorting System. Comprises Of Belt Conveyor, Loading Platform, Sorting Carrier, Code Reading And Weighing System, Coding System, And Bagging System.
Conveyor-Based Sorters To Sort Large Parcels, Batch Sorting Of Apparel, Small Items, Fragile Or High Friction Products.
Ideal For Fast Moving Goods Due To Gentle Handling, Tight Divert Points.
Products To Be Sorted Added On A Continously Rotating Conveyor (Carrier) With 100s Of Miniature Bi-Directional Cross Belt Conveyors (Carts) Running In Perpendicular Direction.
When Any Individual Belt Conveyor Is Activated, It Transfers/Pushes The Product Off Of The Loop Conveyor Into A Chute Or Take Away Conveyor Arranged At Right Angles To Carrier.
Right Angle Discharge Allows For Compact Design & Higher Density Divert Locations.

Linear Cross Bet Sorters – Vertical Sorter With Linear -Straight Routing. Single Layer Single Zone Sorting Capacity Of Small Package Is Approx 13090-19636 PPH. Operating Speed: 2-3 m/s. Cart Pitch: 1100 mm

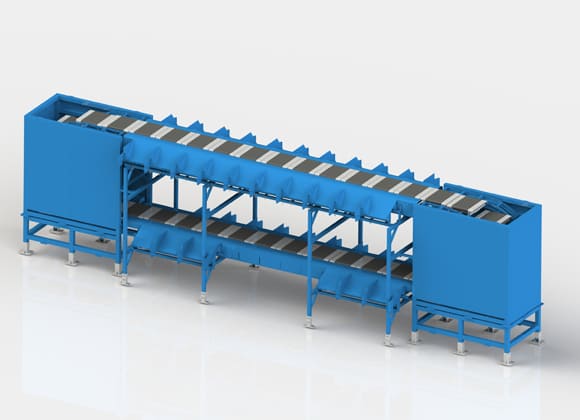

Linear Vertical Cross Belt Sorter – Single Layer	Linear Vertical Cross Belt Sorter – Double Layer

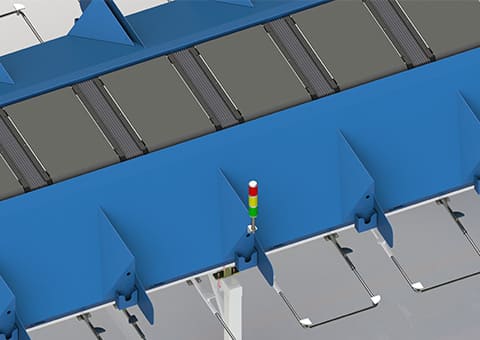

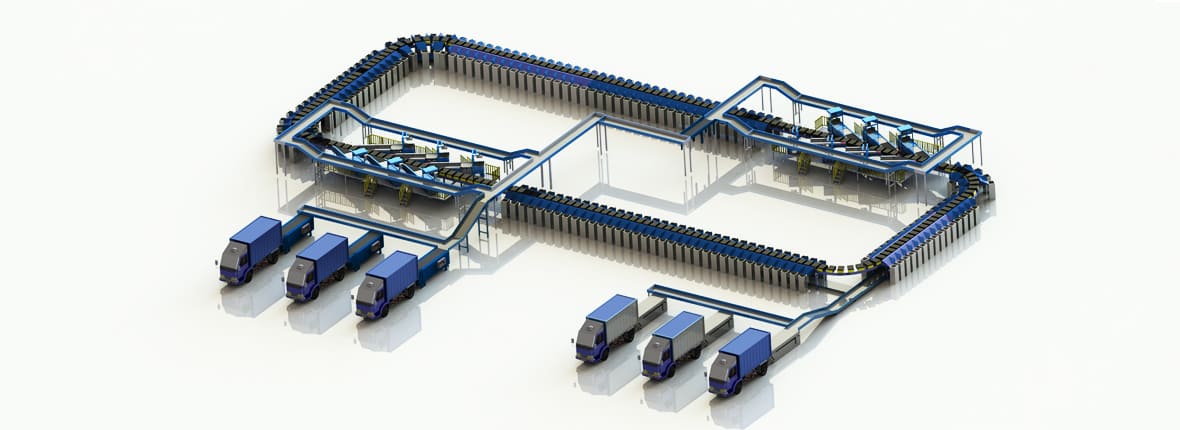

Circular Cross Belt Sorters – Vertical Sorter With Circular Routing. Single-Layer And Multi-Layer Configurations Available. In Multi-Layer Height Difference Is 1,200mm And Each Layer Has Independent Operation Control. Running Speed: 2.5 m/s. Sorting Capacity: 12,000-18000 Pcs/Hour For Single Layer Single Zone. Noise: <70db

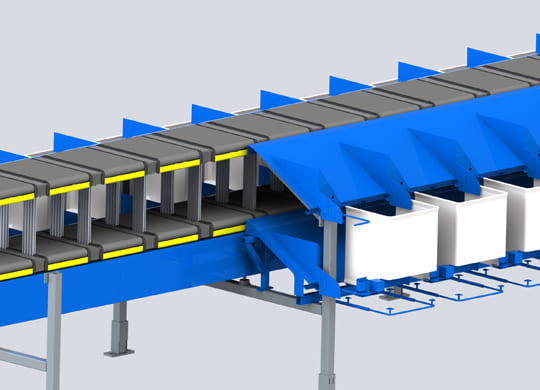

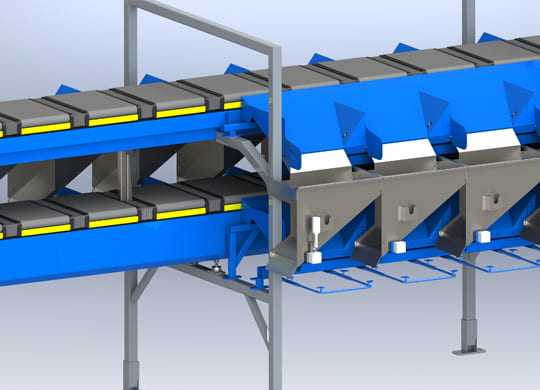

Conventional Single Layer Circular Cross Belt Sorters – Only One Layer Of Sorting	Double Layer Small-Big Track – Height Difference Between Layers 800mm. Upper Track Operation Relies On Lower Layer Operation.	Double Layer Single Track Track Circular Cross Belt Sorters -Height Difference Between Layers 600mm, Only One-Layer Power Supply For Double-Layer Sorting.
